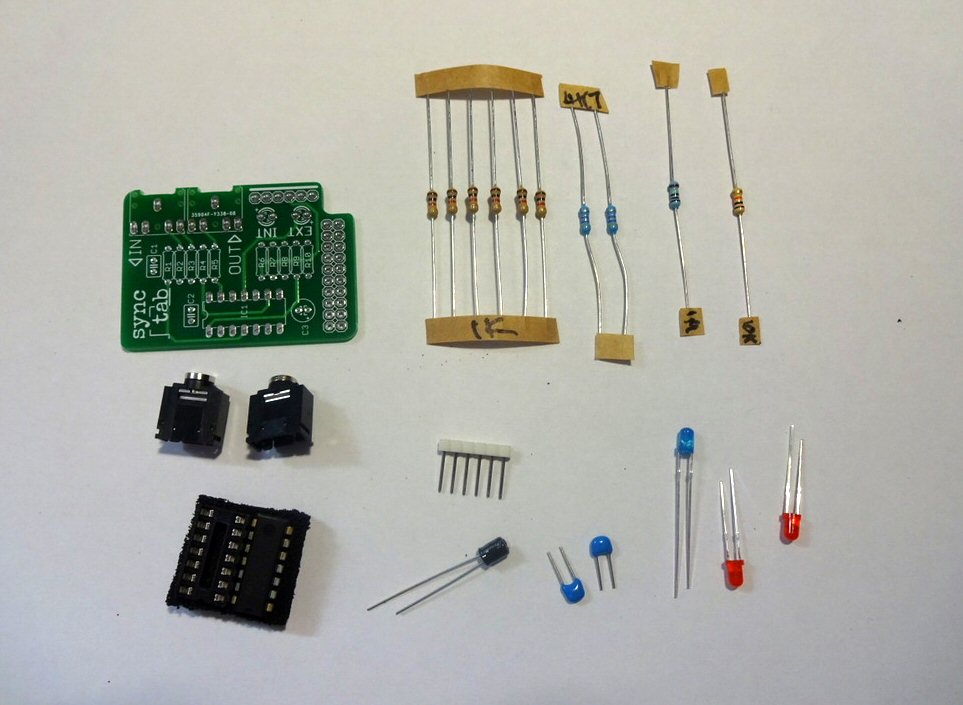

Kit Contents

The synchtab kit contains the following parts:

• R1, R5 4K7 Resistor 5% 0.25W
• R2 10K Resistor 5% 0.25W
• R3 1M Resistor 5% 0.25W
• R4, R6, R7, R8, R9, R10 1K Resistor 5% 0.25W
• C1, C2 100NF Ceramic Capacitor
• C3 4.7uF Electrolytic Capacitor
• 2 x 3.5mm PCB Mount Jack Socket
• 1 x 74HC14N Schmitt Trigger Inverter
• 1 x DIP14 IC Socket
• 2 x 3mm LED
• 1 x 6 Way SIL Pin Header
• 1 x Printed Circuit Board
